Home / Vehicles / XR4F
2026 · 4 Passenger Forward Facing

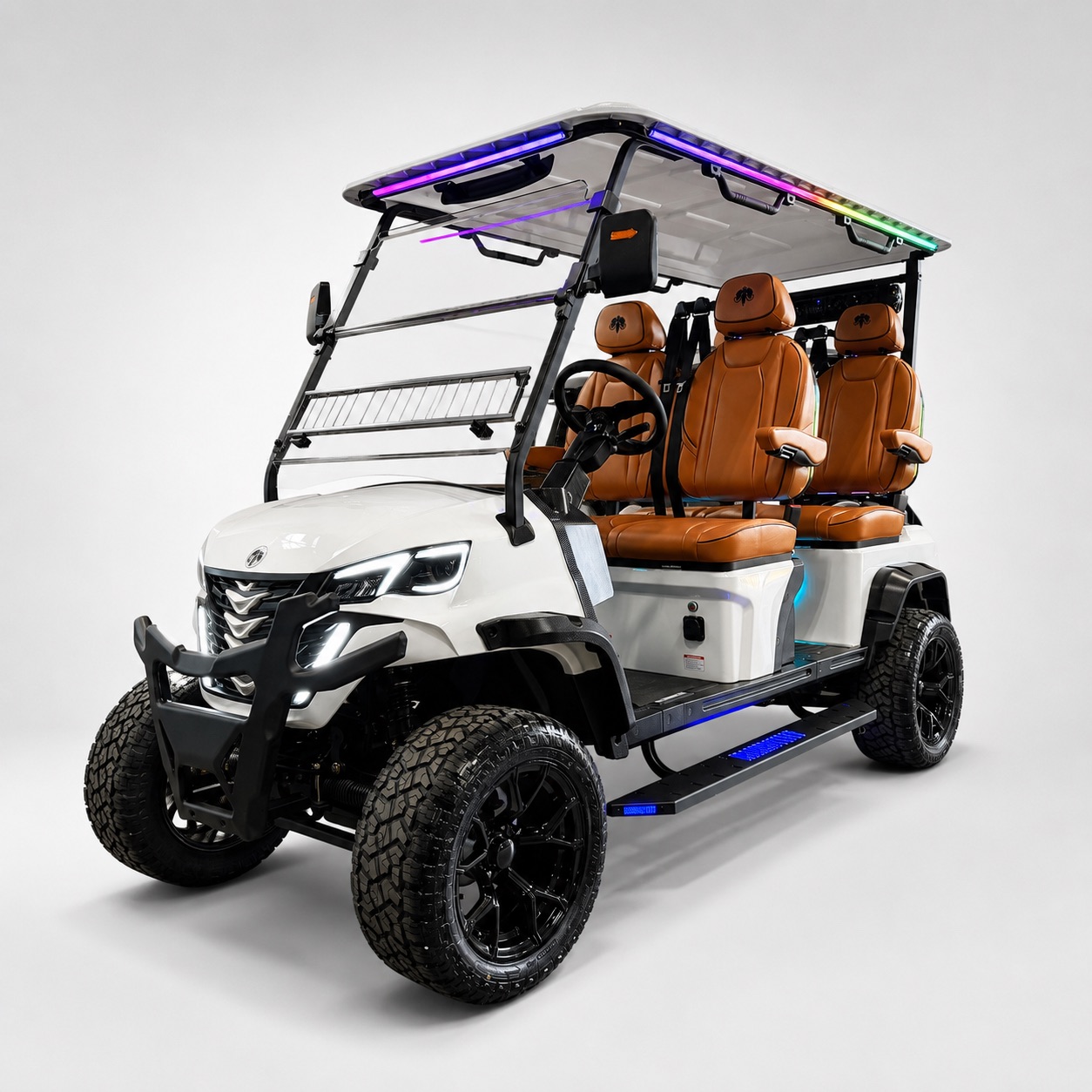

Mammoth XR4F
Four forward-facing seats on the long wheelbase chassis. Navitas 7.5kW power, 25+ MPH, and a maintenance-free 72V lithium-ion battery.
Seating
4 Forward
Top Speed
25+ MPH
Est. Range
40–50 Miles
Battery
72V 150Ah
Specifications
XR4F Spec Sheet
Powertrain
Battery72V / 150Ah Lithium-Ion
Battery TypeMaintenance Free
MotorNavitas 7.5kW Performance

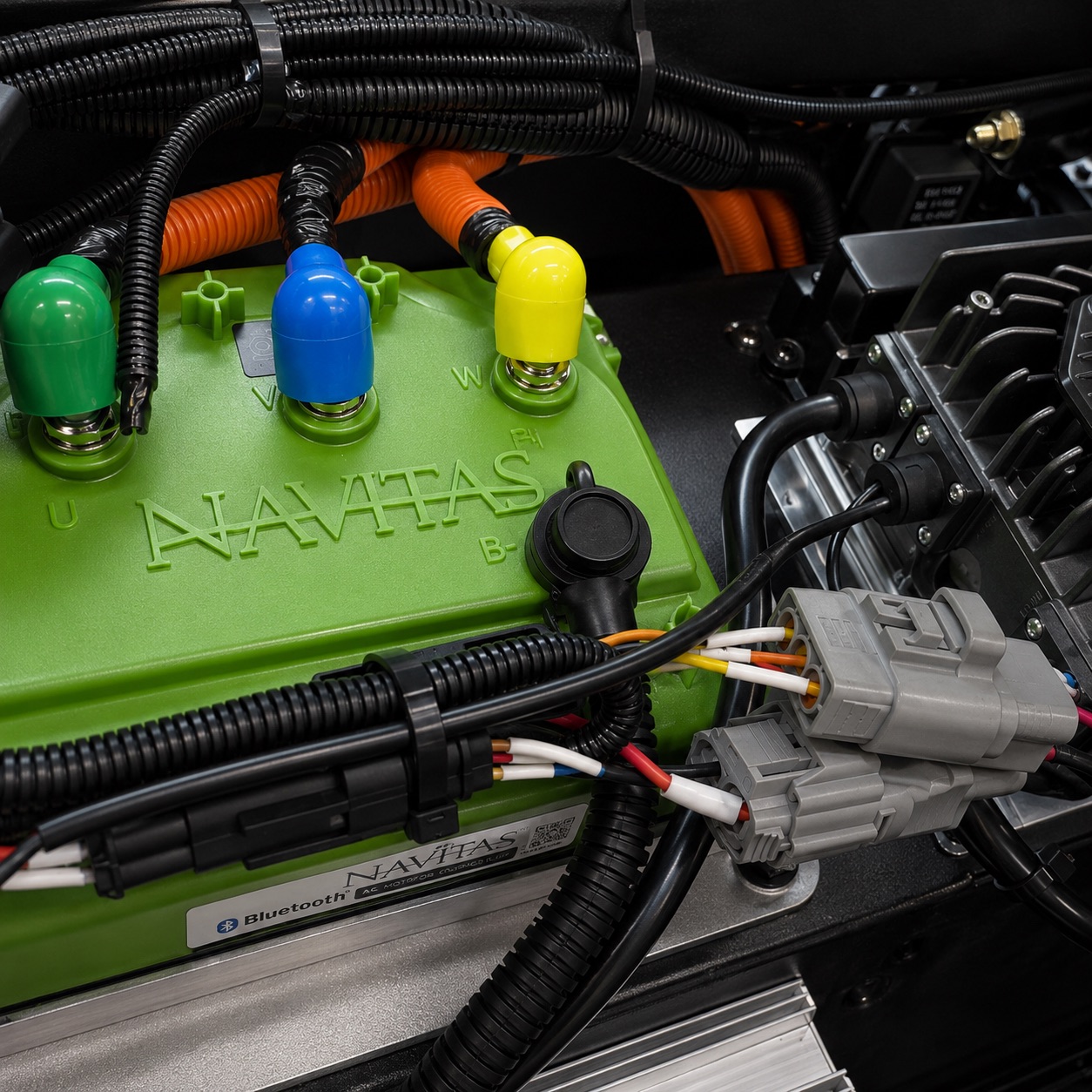

ControllerNavitas 600-Amp
DriveRWD
Top Speed25 MPH+
Est. Range40–50 Miles
Charging Time (110V)3–5 Hours
Chassis & Handling

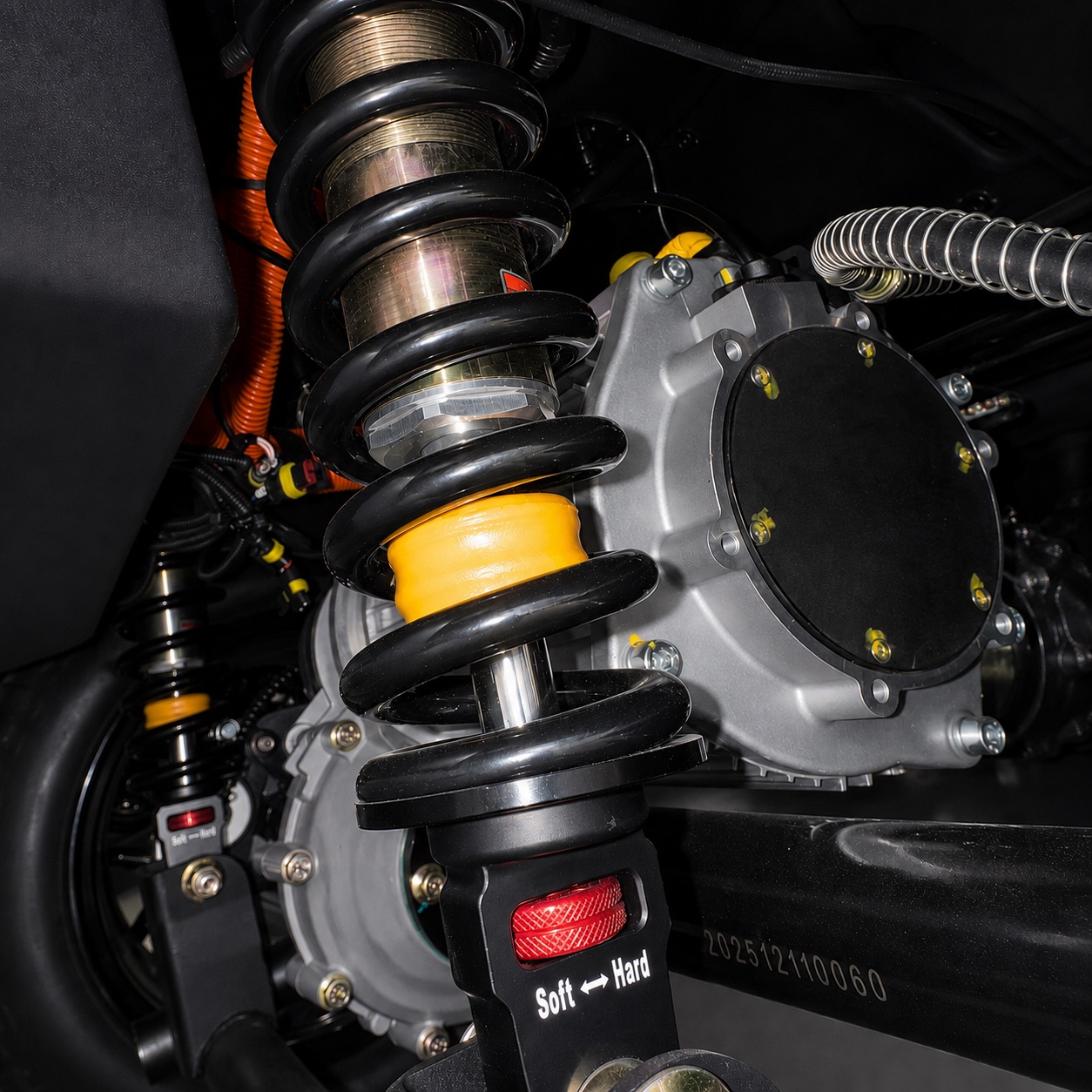

SuspensionMammothEV StabiliTrak
AdjustabilityHeight & Damping
Ride HeightStandard or Lifted
Brakes4-Wheel Disc

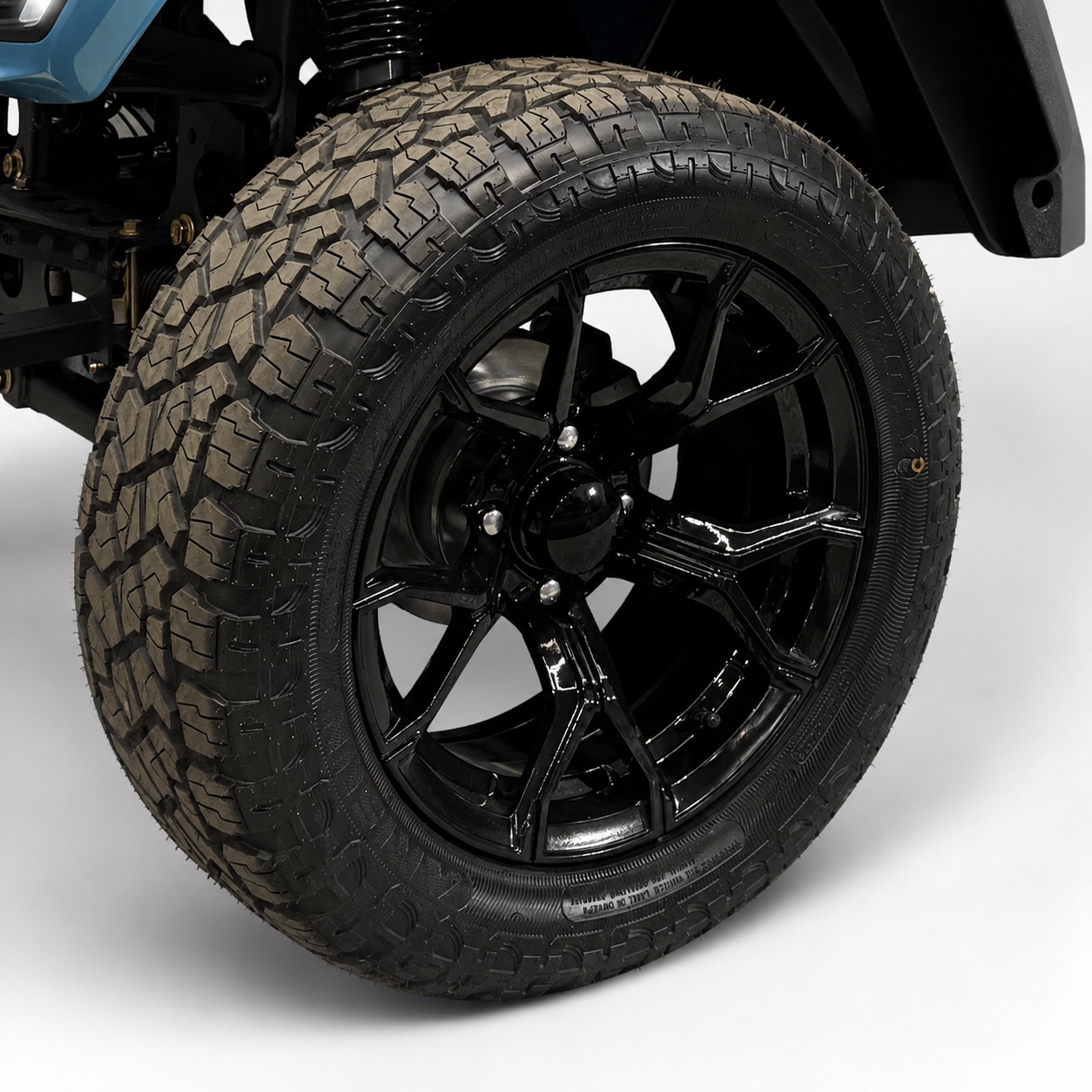

Wheels14″ Premium Gloss Black
Tires23″ Steel-Belted
Interior & Technology
Seating4 Passenger Forward Facing
SeatsPremium LUX Leather
StitchingDiamond Cross Stitched

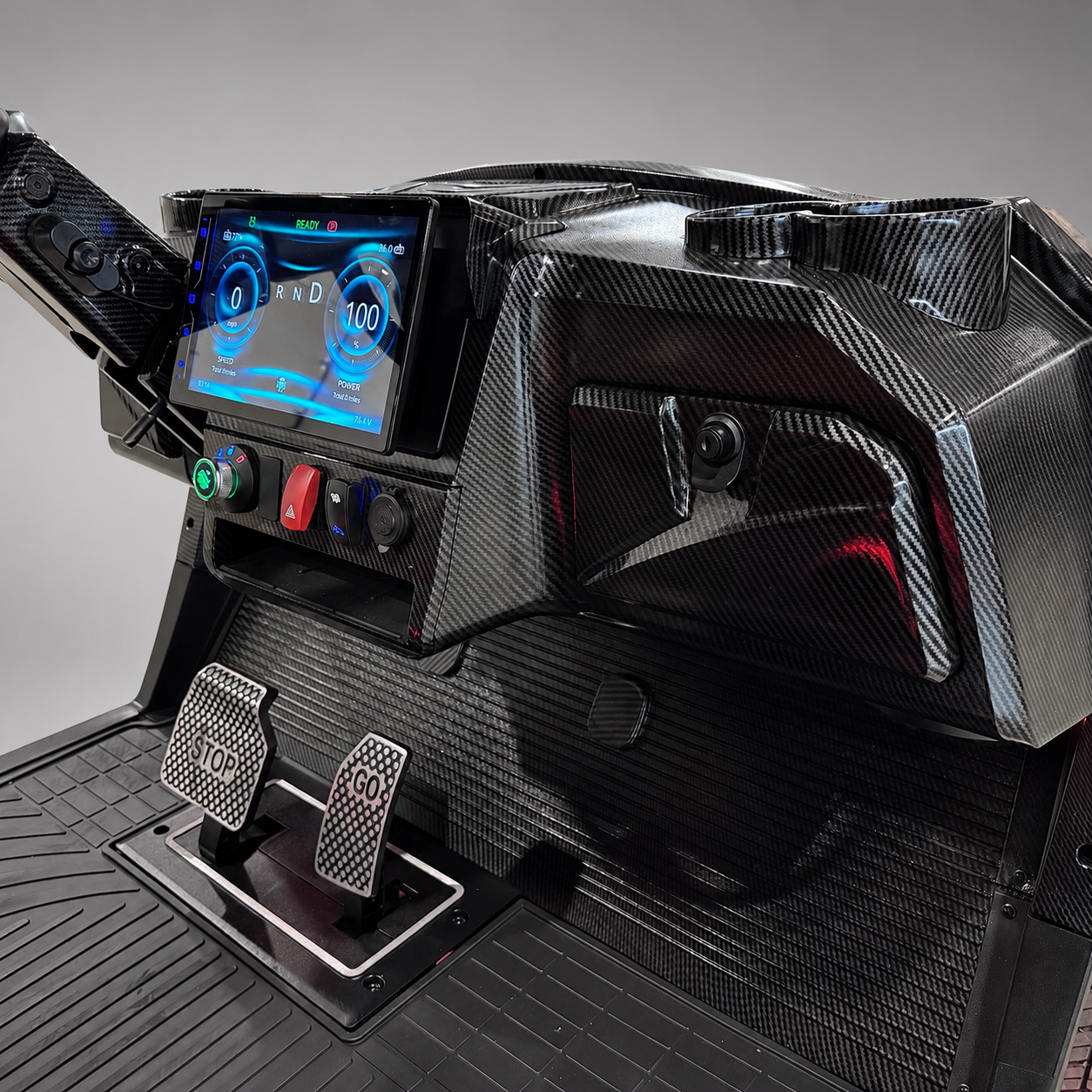

Display10.5″ Rotating Touchscreen
AudioLED Soundbar + 4 Speakers
StartKeyless Push-Button
ChargingWireless Phone Charger
Entry2 Proximity Key Fobs
Dimensions
Overall Length126″
Overall Width53″
Overall Height82″
Ground Clearance7¾″
Wheel Base102″
Dry Weight1,510 lbs
Safety & Lighting
Seat BeltsThree-Point, Adjustable
Drive ModesSelectable, 25 MPH or 8 MPH
WindscreenDOT Approved
Side StepsFrame Mounted
Accent LightingRGB LED Seat Strips
Finish & Coverage
Body Colors200+ Gloss or Matte
Seat Colors36 Options
Factory Warranty10 Years
Battery WarrantyLifetime
AssembledUSA · Idaho
Gallery
See the XR4F
Click a thumbnail to view it larger.
Ready to Ride?
Get pricing, financing, and delivery options from an authorized MammothEV dealer.
